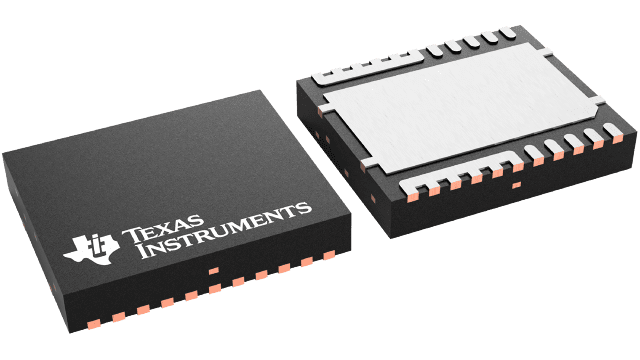

Images are for reference only , Please refer to the product datasheet
CSD95372BQ5MCT
12-VSON (5x6) 60A Synchronous Buck NexFET™ Smart Power Stage with Dual Cool package
Manufacturer：
Manufacturer NO：
CSD95372BQ5MCT
copy
Product SN：
10505-CSD95372BQ5MCT
copy
Package/Case：
VSON-CLIP (DMC)-12
copy
Manufacturer Lead Time：
6 Weeks
copy
Datasheet:
Detailed Descripition：
Half Bridge Driver Synchronous Buck Converters Power MOSFET 12-VSON (5x6)
copy
Product Application Field：None
Product Application Field：None
Environmental & Export Classifications
RoHS Status
ROHS3 Compliant
Moisture Sensitivity Level (MSL)
2 (1 Year)
REACH Status
REACH Affected
ECCN
EAR99
HTSUS
8541.29.0095
Documents & Media
Datasheets PDF CSD95372BQ5MCT Datasheet PDF
Product Description
- 60-A Continuous Operating Current Capability
- 93.4% System Efficiency at 30 A
- Low Power Loss of 2.8 W at 30 A
- High-Frequency Operation (up to 1.25 MHz)
- Diode Emulation Mode With FCCM
- Temperature-Compensated Bidirectional Current
Sense - Analog Temperature Output (600 mV at 0°C)
- Fault Monitoring
- High-Side Short, Overcurrent, and
Overtemperature Protection
- High-Side Short, Overcurrent, and
- 3.3-V and 5-V PWM Signal Compatible
- Tri-State PWM Input
- Integrated Bootstrap Diode
- Optimized Deadtime for Shoot-Through Protection
- High-Density SON 5 × 6 mm Footprint
- Ultra-Low Inductance Package
- System-Optimized PCB Footprint
- DualCool™ Packaging
- RoHS Compliant – Lead-Free Terminal Plating
- Halogen-Free
750 In Stock
Can Ship lmmediately
Want the lower wholesale price? Please send RFQ, we will respond immediately
Product price
Qty
Unit Price
Ext Price
1000
$2.361
$2361
For more CSD95372BQ5MCT prices, contact customer service to get a discount!
