DLP550JEFYA

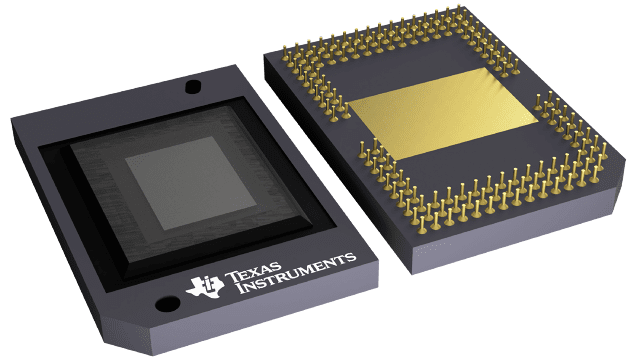

149-CPGA (22.3x32.2) 0.55-inch XGA DLP® digital micromirror device (DMD)

Manufacturer：

Luminary Micro/Texas Instruments

copy

Manufacturer NO：

DLP550JEFYA

copy

Product SN：

10528-DLP550JEFYA

copy

Package/Case：

DLP-S450 (FYA)-149

copy

Manufacturer Lead Time：

6 Weeks

copy

Datasheet:

DLP550JEFYA Datasheet PDF

copy

Detailed Descripition：

Digital Micromirror Device (DMD) 149-CPGA (22.3x32.2)

copy

Product Application Field：None

0 In Stock

Finding Goods Through Sales

Want the lower wholesale price? Please send RFQ, we will respond immediately

Customer Reference

Quantity

Product price

Qty

Unit Price

Ext Price

1000

$85.932

$85932

For more DLP550JEFYA prices, contact customer service to get a discount!

Environmental & Export Classifications

RoHS Status

ROHS3 Compliant

REACH Status

REACH Unaffected

ECCN

EAR99

HTSUS

8542.39.0001

Documents & Media

Datasheets PDF DLP550JEFYA Datasheet PDF

Product Description

The TI DLP550JE digital micromirror device (DMD) is a digitally controlled micro-electromechanical system (MEMS) spatial light modulator (SLM) that enables bright, affordable DLP 0.55 XGA display solutions. The DLP550JE DMD, together with the DLPC4430 display controller, the DLPA100 power and motor driver, and the DLPA200 DMD micromirror driver, provides the capability to achieve high performance systems and is a great fit for display applications that require 4:3 aspect ratio, high brightness, and system simplicity.

0.55-Inch micromirror array diagonal
- XGA (1024 × 768)
- 10.8-micron micromirror pitch
- ±12° micromirror tilt angle (relative to flat state)
- Corner illumination
2xLVDS input data bus
The DLP550JE chipset includes:
- DLP470TE DMD
- DLPC4430 controller
- DLPA100 controller power management and motor driver IC
- DLPA200
