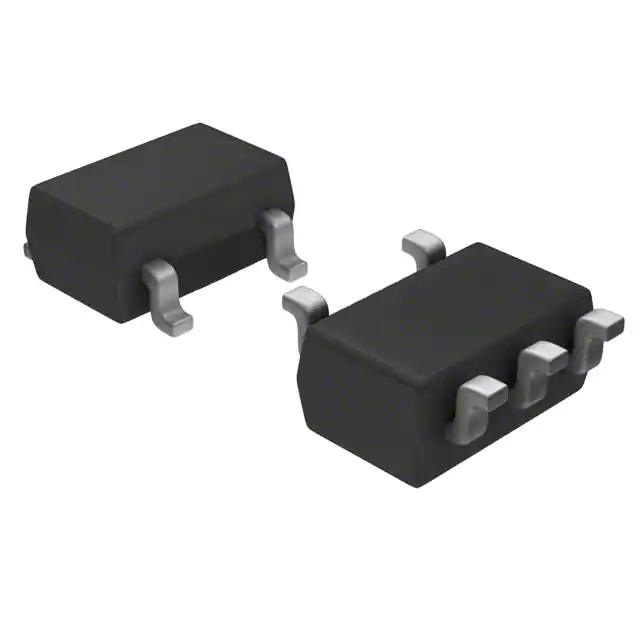

Images are for reference only , Please refer to the product datasheet

LM5050MK-2/NOPB

SOT-23-THIN 6-V to 75-V 400-uA IQ ORing FET controller

Manufacturer：

Luminary Micro/Texas Instruments

copy

Manufacturer NO：

LM5050MK-2/NOPB

copy

Product SN：

10512-LM5050MK-2/NOPB

copy

Package/Case：

SOT-23-THN (DDC)-6

copy

Manufacturer Lead Time：

26 Weeks

copy

Datasheet:

LM5050MK-2/NOPB Datasheet PDF

copy

Detailed Descripition：

FET test, Linear control, Reverse current blocking

copy

Product Application Field：None

0 In Stock

Finding Goods Through Sales

Want the lower wholesale price? Please send RFQ, we will respond immediately

Customer Reference

Quantity

Product price

Qty

Unit Price

Ext Price

1000

$0.932

$932

For more LM5050MK-2/NOPB prices, contact customer service to get a discount!

Environmental & Export Classifications

RoHS Status

ROHS3 Compliant

Moisture Sensitivity Level (MSL)

1 (Unlimited)

REACH Status

REACH Unaffected

ECCN

EAR99

HTSUS

8542.39.0001

Documents & Media

Datasheets PDF LM5050MK-2/NOPB Datasheet PDF

Product Description

The LM5050-2 High Side OR-ing FET Controller operates in conjunction with an external MOSFET as an ideal diode rectifier when connected in series with a power source. This OR-ing controller allows MOSFETs to replace diode rectifiers in power distribution networks thus reducing both power loss and voltage drops.

The LM5050-2 controller provides charge pump gate drive for an external N-Channel MOSFET and a fast response comparator to turn off the FET when current flows in the reverse direction. The LM5050-2 can connect power supplies ranging from +6V to +75V and can withstand transients up to +100V.

The LM5050-2 also provides a FET test diagnostic mode which allows the system controller to test for shorted MOSFETs.
