TMS320VC5409AZWS12

Fixed-Point DSP

Manufacturer：

Luminary Micro/Texas Instruments

copy

Manufacturer NO：

TMS320VC5409AZWS12

copy

Product SN：

10442-TMS320VC5409AZWS12

copy

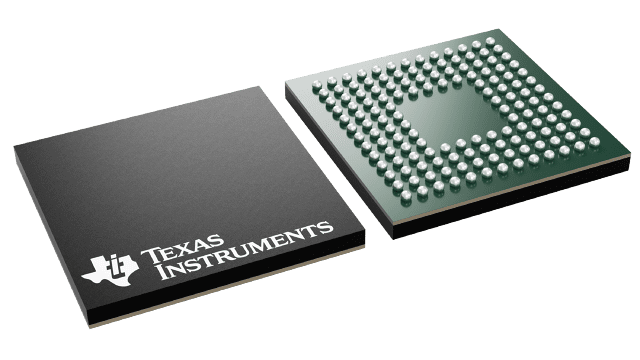

Package/Case：

NFBGA (ZWS)-144

copy

Manufacturer Lead Time：

copy

Datasheet:

TMS320VC5409AZWS12 Datasheet PDF

copy

Detailed Descripition：

-

copy

Product Application Field：None

0 In Stock

Finding Goods Through Sales

Want the lower wholesale price? Please send RFQ, we will respond immediately

Customer Reference

Quantity

Product price

Qty

Unit Price

Ext Price

1000

$11.801

$11801

For more TMS320VC5409AZWS12 prices, contact customer service to get a discount!

Documents & Media

Datasheets PDF TMS320VC5409AZWS12 Datasheet PDF

Product Description

The TMS320VC5409A fixed-point, digital signal processor (DSP) (hereafter referred to as the 5409A unless otherwise specified) is based on an advanced modified Harvard architecture that has one program memory bus and three data memory buses. This processor provides an arithmetic logic unit (ALU) with a high degree of parallelism, application-specific hardware logic, on-chip memory, and additional on-chip peripherals. The basis of the operational flexibility and speed of this DSP is a highly specialized instruction set.

Separate program and data spaces allow simultaneous access to program instructions and data, providing a high degree of parallelism. Two read operations and one write operation can be performed in a single cycle. Instructions with parallel store and application-specific instructions can fully utilize this architecture. In addition, data can be transferred between data and program spaces. Such parallelism supports a powerful set of arithmetic, logic, and bit-manipulation operations that can all be performed in a single machine cycle. The 5409A also includes the control mechanisms to manage interrupts,

Advanced Multibus Architecture With Three Separate 16-Bit Data Memory Buses and One Program Memory Bus
40-Bit Arithmetic Logic Unit (ALU) Including a 40-Bit Barrel Shifter and Two Independent 40-Bit Accumulators
17- \xD7 17-Bit Parallel Multiplier Coupled to a 40-Bit Dedicated Adder for Non-Pipelined Single-Cycle Multiply/Accumulate (MAC) Operation
Compare, Select, and Store Unit (CSSU) for the Add/Compare Selection of the Viterbi Operator
Exponent Encoder to Compute an Exponent Value of a 40-Bit Accumulator Value in a Single Cycle
Two Address Generators With Eight Auxiliary Registers and Two Auxiliary Register Arithmetic Units (ARAUs)
Data Bus With a Bus Holder Feature
Extended Addressing Mode for 8M \xD7 16-Bit Maximum Addressable External Program Space
32K x 16-Bit On-Chip RAM Composed of:
- Four Blocks of 8K \xD7 16-Bit On-Chip Dual-Access Program/Data RAM
16K \xD7 16-Bit On-Chip ROM Configured for Program Memory
Enhanced External Parallel Interface (XIO2)
Single-Instruction-Repeat and Block-Repeat Operations for Program Code
Block-Memory-Move Instructions for Better Program and Data Management
Instructions With a 32-Bit Long Word Operand
Instructions With Two- or Three-Operand Reads
Arithmetic Instructions With Parallel Store and Parallel Load
Conditional Store Instructions
Fast Return From Interrupt
On-Chip Peripherals
- Software-Programmable Wait-State Generator and Programmable Bank-Switching
- On-Chip Programmable Phase-Locked Loop (PLL) Clock Generator With Internal Oscillator or External Clock Source ⁽¹⁾
- One 16-Bit Timer
- Six-Channel Direct Memory Access (DMA) Controller
- Three Multichannel Buffered Serial Ports (McBSPs)
- 8/16-Bit Enhanced Parallel Host-Port Interface (HPI8/16)
Power Consumption Control With IDLE1, IDLE2, and IDLE3 Instructions With Power-Down Modes
CLKOUT Off Control to Disable CLKOUT
On-Chip Scan-Based Emulation Logic, IEEE Std 1149.1 ⁽²⁾ (JTAG) Boundary Scan Logic
144-Pin Ball Grid Array (BGA) (GGU Suffix)
144-Pin Low-Profile Quad Flatpack (LQFP) (PGE Suffix)
6.25-ns Single-Cycle Fixed-Point Instruction Execution Time (160 MIPS)
8.33-ns Single-Cycle Fixed-Point Instruction Execution Time (120 MIPS)
3.3-V I/O Supply Voltage (160 and 120 MIPS)
1.6-V Core Supply Voltage (160 MIPS)
1.5-V Core Supply Voltage (120 MIPS)
